Machining & Heat Treatment Facilities
Facilities
|
| < Back |
 |
| |
| Heavy Duty Lathe Machine |
| Machine |
Model |
Make |
Maximum Turning |
| Dia |
Length |
Job Dia |
Weight |
| FL 40000 |
Facing |
Beco |
3500 mm |
12000 mm |
4000 mm |
30 Tons |
|
| |
| Horizontal Spindle Surface Grinding Machine |
| Model |
Make |
Working
Surface |
Max.Grind
Length |
Max.cross
traverse |
Max.Longitudinal
traverse |
| SFW2 |
HMT |
250x1500 mm |
1500 mm |
320 mm |
1650 mm |
|
| |

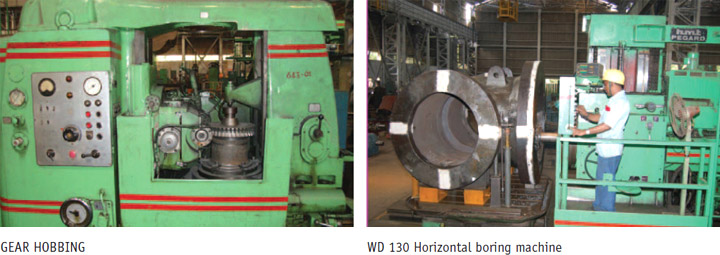

| Gear Hobbing Machine |
| Model |
Make |
Maximum Gear Dimensions |
| Dia |
Module |
| H 400 |
HMT |
400 mm |
8 |
|
| |
| Drilling Machines (Radial Arm) |
| Maximum Drilling Capacity φ 100 in Steel & φ 125 in Cast Iron |
| |
| Heat Treatment Processes, Sand Blasting and Painting |
| Stress Relieving, Annealing, Hardening, Tempering, Case Hardening by Carburising, Flame Hardening |
| |
 |

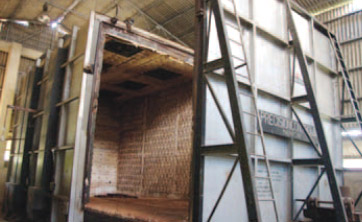

| Stress relieving furnace |
|
| Furnaces |
Model |
Make |
Capacity / Remarks |
| Stress relieving furnace |
Bogie-Hearth
Precon |
Precision |
5000 W x 5000 H x 70000 Deep.X 650°C (Max. charge
Weight – 32 Tons) |
| Pit Furnace |
Precon |
Precision |
φ 500 x 2500mm x 1050° C |
| Muffl e Furnace |
|
Elheat |
750mm x 750mm x 1000° C |
|
| |
| Sand Blasting and Painting |
VP 2 Y |
Indabrator |
7600 Lb |
|
|
|
|
